Glass Bending and Tempering System
Yuntong H Series
Yuntong- Thickness
- 2.8-10
- Glass type
- Bent, Low-E / coated
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare

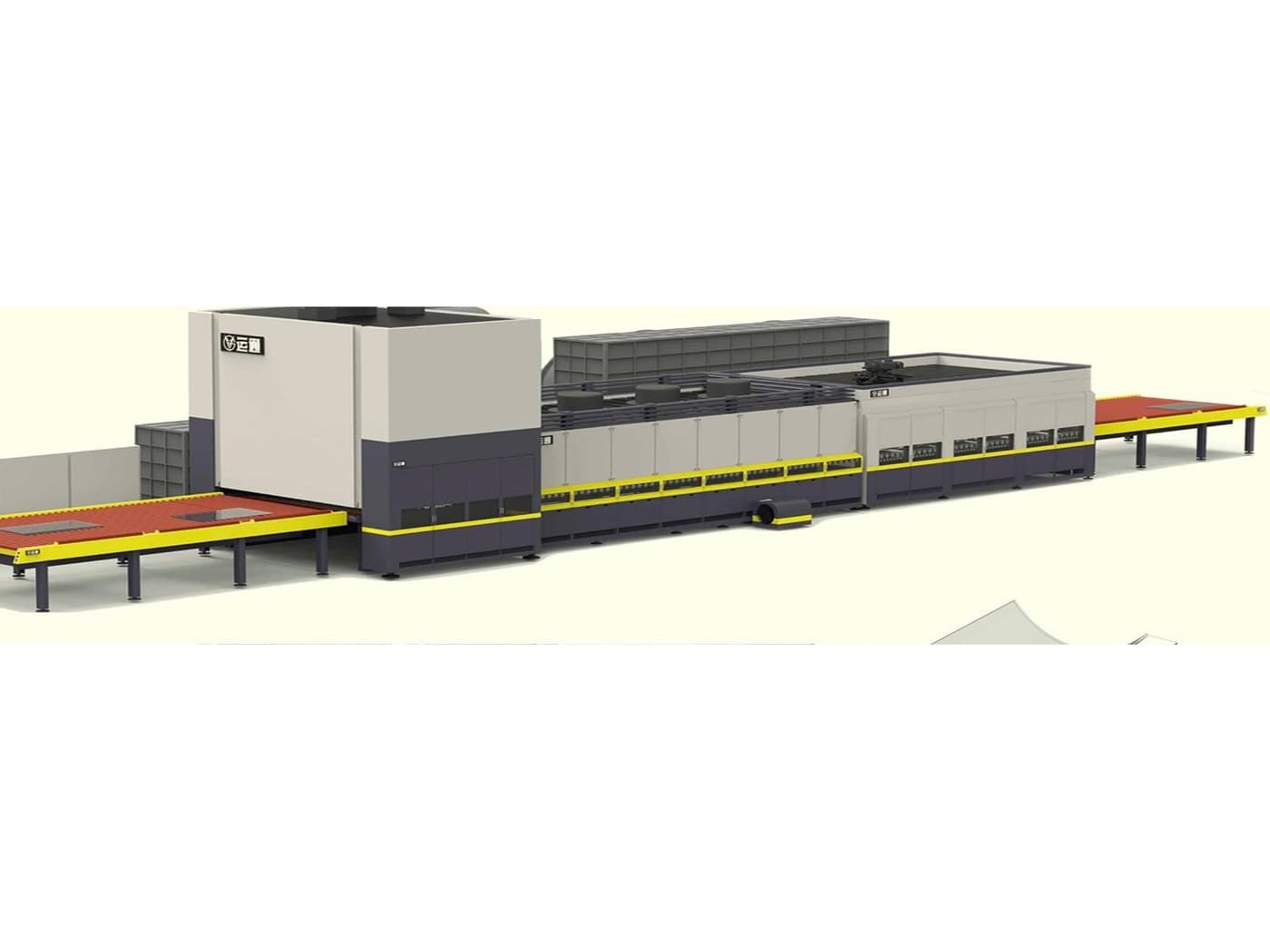

A crosswise deep curve bending and tempering system for automotive sidelites, architectural, decorative, furniture and electric appliance glass.
- Glass thickness from 2.8mm to 19mm
- Glass size from 200 x 320mm to 3500 x 6000mm
- Radius from 180mm to 45 meters
- Can temper soft-coat low-E, screen printed and enameled glass
- Easy thickness switchover and radius change
Key Specifications
| Minimum glass size (mm) | 150 x 350 |
|---|---|
| Glass thickness range (mm) | 2.8-10 |
| Sizes in this series | 5 |
Figures as published by the manufacturer; not yet independently verified. (Yuntong catalog_2023EN.pdf, 8)
Models in this series
| Model | Max glass H (mm) | Max glass A (mm) | Min glass size H x A (mm) | Radius min | Radius max | Glass thickness (mm) |
|---|---|---|---|---|---|---|
| WG12H | 1200 | 600, 1000 | 150 x 350 | 350 mm | 25 m | 2.8-6 |
| WG15H | 1500 | 600, 1000, 1500 | 150 x 350 | 380 mm | 30 m | 3.2-10 |
| WG18H | 1800 | 600, 1000, 1500 | 200 x 400 | 400 mm | 30 m | 3.2-10 |
| WG21H | 2100 | 600, 1000, 1500, 2000 | 200 x 400 | 420 mm | 45 m | 3.5-10 |
| WG24H | 2400 | 1000, 1500, 2000, 2500 | 200 x 400 | 600 mm | 60 m | 3.5-10 |
Basic data of H series. Data is for sales reference only and should not cause contractual obligations. Production rate depends on dimension and number of working bays. Jumbo bender installed: A6000mm x L3500mm.
Where it sits in the line
The stations before and after this machine on a glass processing line.
Glass Tempering Furnaces
H Series
After
Similar machines
Manufacturer
Yuntong has concentrated on glass processing technology and machinery for over 40 years, and built China's first horizontal tempering furnace in 1989. The company reports leading work in zonal heating control, quenching power saving and forced convection heating, and states it has delivered over 700 tempering lines worldwide for architectural, appliance, automotive, furniture and PV glass.
