Continuous Glass Tempering Furnace
Jinglass Convection Continuous Flat Glass Tempering Furnace
Jinglass- Max sheet size
- 2500 x 4200
- Thickness
- 2.5-12
- Glass type
- Flat, Low-E / coated
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare
A full convection continuous furnace for high-standard glass types including architectural, furniture and vacuum insulating glass.
- Suits architectural, furniture and vacuum insulating glass
- Customizable heating length from 24,000 to 60,000mm
- Handles glass from 2.5mm
Key Specifications
| Maximum glass size (mm) | 2500 x 4200 |
|---|---|
| Glass thickness range (mm) | 2.5-12 |
| Heating method | Forced convection |
| Sizes in this series | 6 |
Figures as published by the manufacturer; not yet independently verified. (catalog 260320 compressed.pdf, catalog 23)
Models in this series
| Model | Thickness (mm) | Loading area (mm) |
|---|---|---|
| JGF-CF-40 | 2.5-4 | 1050 x 2000 |
| JGF-CF-48 | 3.2-6 | 1250 x 2000 |
| JGF-CF-60 | 3.2-6 | 1650 x 2000 |
| JGF-CF-70 | 4-8 | 1800 x 3660 |
| JGF-CF-84 | 4-12 | 2100 x 4200 |
| JGF-CF-96 | 5-12 | 2500 x 4200 |
Above data is only for reference, the final data will be specified in the contract. Customization option: heating length 24000-60000mm.
Where it sits in the line
The stations before and after this machine on a glass processing line.
Glass Tempering Furnaces
Convection Continuous Flat Glass Tempering Furnace
After

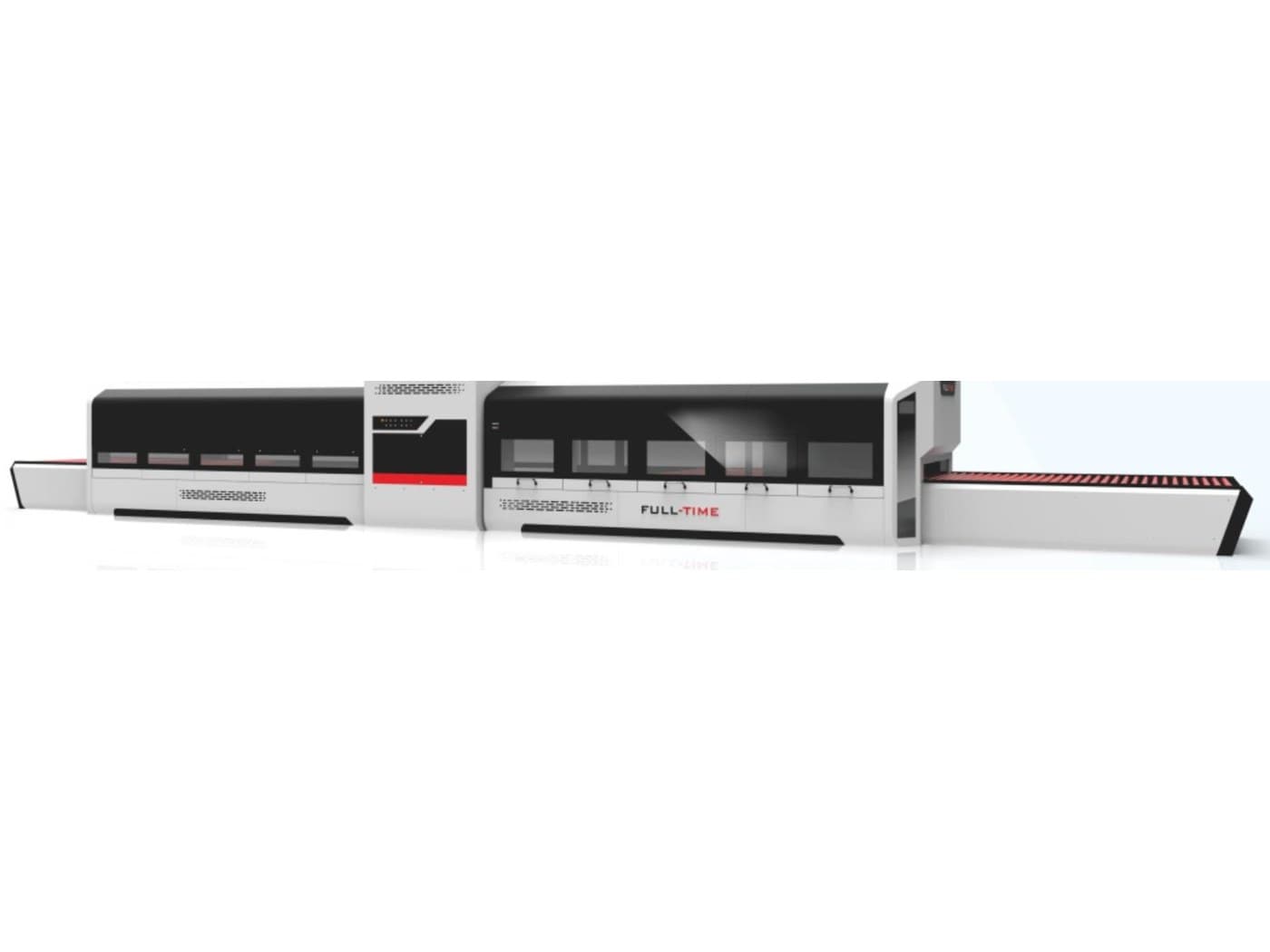

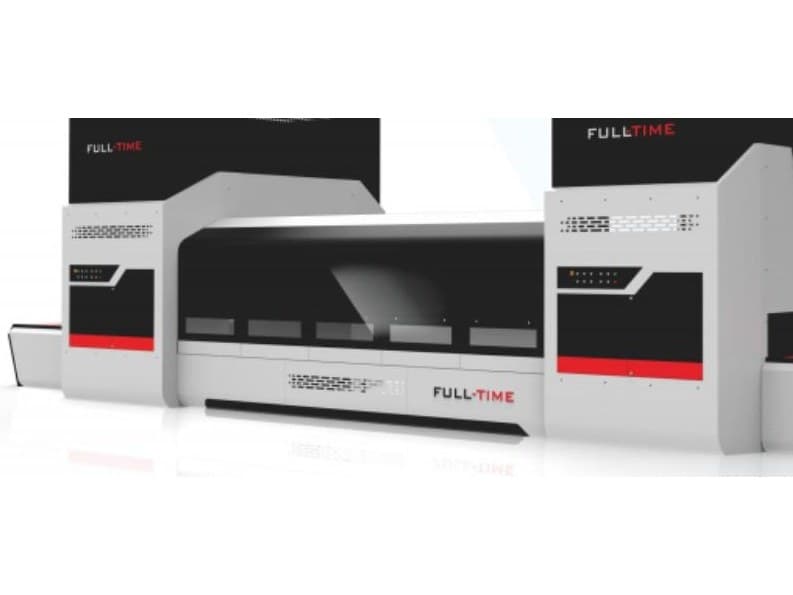

Similar machines
Manufacturer
Jinglass Machinery, founded in 2003, specializes in intelligent tempering, providing digital solutions and tempering furnaces for glass processors worldwide. The company states it was first in the industry to implement an algorithm that automatically generates tempering parameters from glass layout and enables dynamic temperature control according to real-time glass position. Its ultra-thin tempering technology and temperature control process are reported in over 400 photovoltaic glass continuous tempering lines worldwide.
View the manufacturerJinglass Convection Continuous Flat Glass Tempering Furnace
