CNC Glass Drilling Machine

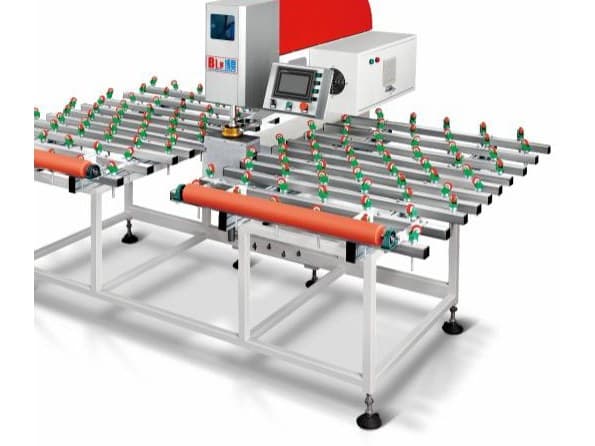

BLM Machinery Shower Door Glass Drilling Machines
BLM Machinery- Max sheet size
- 2500 x 1500
- Thickness
- 4-19
- Automation
- Automatic
- Glass type
- Drilling
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare
Roller-conveyor drilling machines aimed at shower enclosure glass, the application BLM was founded to serve.
- Drilling diameter 6 to 50 mm on 4 to 19 mm glass
- A11C reaches 900 mm into the pane from the machine head
- A31D adds industrial computer control with scanning mode drilling and fast drawing software
- Table working height 900 +/- 20 mm
Key Specifications
| Maximum glass size (mm) | 2500 x 1500 |
|---|---|
| Minimum glass size (mm) | 1600 x 300 |
| Glass thickness range (mm) | 4-19 |
| Sizes in this series | 3 |
Figures as published by the manufacturer; not yet independently verified. (博亮BLM-钻铣设备画册Drilling&Milling Machine Catalog 2026.pdf, 04, 05)
Models in this series
| Model | X travel (mm) | Y travel (mm) | Drilling diameter (mm) | Glass thickness (mm) | Max glass size (mm) | Min glass size (mm) | Overall size (mm) |
|---|---|---|---|---|---|---|---|
| A11C | – | – | 6-50 | 4-19 | – | – | 2700 x 2000 x 1700 |
| A11B-2 | X1 0-1500, X2 0-750 | 0-1100 | 6-50 | 4-19 | – | – | 4380 x 2800 x 1600 |
| A31D | X1 0-500, X2 0-500, X3 500-1500 | Y1/Y2 0-1500 | 6-50 | 4-19 | 2500 x 1500 | 1600 x 300 | 8600 x 4600 x 2200 |
Catalog pages 04 and 05.
Where it sits in the line
The stations before and after this machine on a glass processing line.
Glass Drilling and Milling Machines
Shower Door Glass Drilling Machines
Similar machines
BLM Machinery Multi-Spindle Bow-Type Glass Drilling Machines
BLM MachineryMax sheet size: 3000 x 1800 or 2500 x 1200
BLM Machinery Vertical Glass Drilling and Milling Machines
BLM MachineryMax sheet size: 6000 x 3000
BLM Machinery Gantry Glass Drilling and Milling Machines
BLM MachineryMax sheet size: 6000 x 2500
Manufacturer
Guangdong BLM Machinery is a glass deep processing machinery manufacturer covering research and development, production, sales and after-sales service. Founded in 2007, it positioned itself to supply intelligent CNC drilling and milling equipment and intelligent production line solutions for shower room glass processing. In 2017 it invested in two 6-metre five-face machining centres from Taiwan plus laser cutting machines and multiple CNC machining centres, bringing core machining processes in house.
