Multi-Spindle Glass Drilling Machine

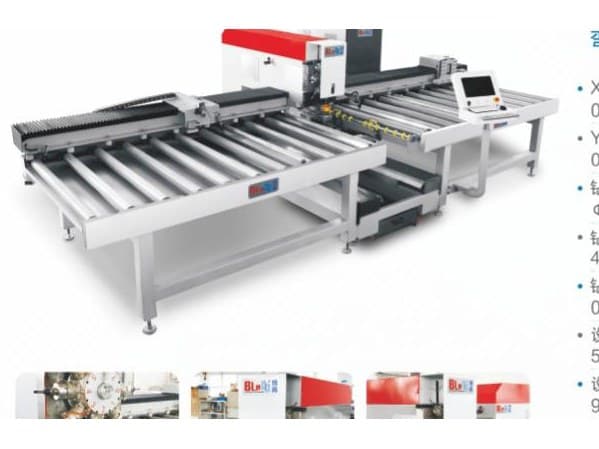

BLM Machinery Multi-Spindle Bow-Type Glass Drilling Machines
BLM Machinery- Max sheet size
- 3000 x 1800 or 2500 x 1200
- Glass type
- Drilling
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare
BLM's bow-type drilling machines carry a tool magazine per head so a pane can receive several hole diameters without an operator changing tooling.
- Tool magazine per head, spindle count customisable
- Industrial computer control with scanning mode drilling and fast drawing software
- Conveying device is a patented structure
- Drilling diameter 6 to 50 mm on 4 to 19 mm glass
Key Specifications
| Maximum glass size (mm) | 3000 x 1800 or 2500 x 1200 |
|---|---|
| Minimum glass size (mm) | 1200 x 300 |
| Sizes in this series | 4 |
Figures as published by the manufacturer; not yet independently verified. (博亮BLM-钻铣设备画册Drilling&Milling Machine Catalog 2026.pdf, 06, 07)
Models in this series
| Model | Spindles | X travel (mm) | Y travel (mm) | Max glass size (mm) | Min glass size (mm) | Overall size (mm) |
|---|---|---|---|---|---|---|
| A66 | 2+2 | 0-2500 | Y1/Y2 0-1100 | 2500 x 1500 | 1200 x 300 | 5700 x 4800 x 1660 |
| A81 | 8 | X1/X2 0-2500 | 0-1200 | 2500 x 1200 | 1200 x 300 | 5850 x 3800 x 1750 |
| A82 | 8+8 | 0-3000 / 0-2500 | Y1/Y2 0-1100 | 3000 x 1800 or 2500 x 1200 | 1200 x 300 | 7068 x 5840 x 1700 |
| A83 | 8+8+8 | X1 0-500, X2 0-500, X3 500-1500 | Y1/Y2 0-1500 | 2500 x 1500 | 1600 x 300 | 8600 x 4600 x 2200 |
Catalog pages 06 and 07. Spindle counts shown as the tool magazine arrangement.
Where it sits in the line
The stations before and after this machine on a glass processing line.

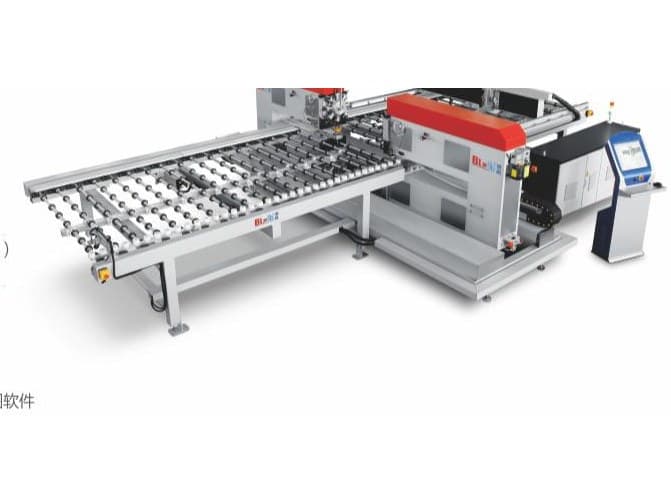

Glass Drilling and Milling Machines
Multi-Spindle Bow-Type Glass Drilling Machines
Similar machines
Manufacturer
Guangdong BLM Machinery is a glass deep processing machinery manufacturer covering research and development, production, sales and after-sales service. Founded in 2007, it positioned itself to supply intelligent CNC drilling and milling equipment and intelligent production line solutions for shower room glass processing. In 2017 it invested in two 6-metre five-face machining centres from Taiwan plus laser cutting machines and multiple CNC machining centres, bringing core machining processes in house.
