CNC Glass Processing Machine
Denver S.p.A. Piggy-Back
Denver S.p.A.- Founded 1984
- Automation
- Automatic
- Glass type
- 5-axis
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare

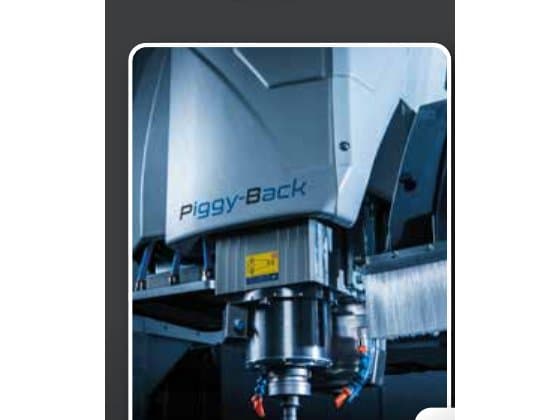

Piggy-Back is an integrated tooling system for Denver's formula and tecnika 5-axis bridge saws.
- 4.5 kW / 6 HP (S6) electrospindle with adjustable speed up to 12,000 rpm and a rotating joint for internal tool lubrication
- 9-position automatic tool change magazine, switching between operations within a single program without operator intervention
- Works alongside the saw's 5-axis straight, diagonal, curved and inclined disc cuts, adding sink and corner cut-outs of any shape combined with the disc cut
- Performs incremental milling, blind and through holes, hole-perimeter drop for flush-fit sinks, engraving, bas-relief and lettering
- ISO40 tool attachment with an additional 1/2" gas attachment on the main disc motor
Key Specifications
| Sizes in this series | 6 |
|---|
Figures as published by the manufacturer; not yet independently verified. (piggy-back.pdf, pilot-evo-new.pdf, piggy-back.pdf p.1-2)
Piggy-Back configuration
| Spec | Value |
|---|---|
| Electrospindle power | 4.5 kW / 6 HP (S6) |
| Spindle speed | adjustable up to 12,000 rpm |
| Tool change magazine | 9-position automatic |
| Tool attachment | ISO40 |
| Additional attachment | 1/2" gas |
| Available for | Denver formula and tecnika bridge sawing machines |
The catalog prints one configuration, not a multi-size model range.
Where it sits in the line
The stations before and after this machine on a glass processing line.
CNC Glass Processing Centers
Piggy-Back
Similar machines
ANHUI MORNSUN INTERNATIONAL CO., LTD. CNC Glass Working Center 3 Axis
ANHUI MORNSUN INTERNATIONAL CO., LTD.Max sheet size: 2000*3000mm
Liaoning Alger Building Material Industrial Co., Ltd. CNC Glass Processing Center
Liaoning Alger Building Material Industrial Co., Ltd.Max sheet size: 3000*2000mm
Manufacturer
Denver S.p.A.Information supplied by manufacturerDenver S.p.A., based in Gualdicciolo, San Marino, makes CNC bridge saws (the "formula" and "tecnika" lines) and the Advance vertical machining center series, with a US sales office (Denver USA Inc., Powells Point, NC / Columbus, OH). The two catalogs in this bundle cover a tooling accessory for its bridge saws and the CAM programming software for its Advance series.
