Butyl Sealant Extruder

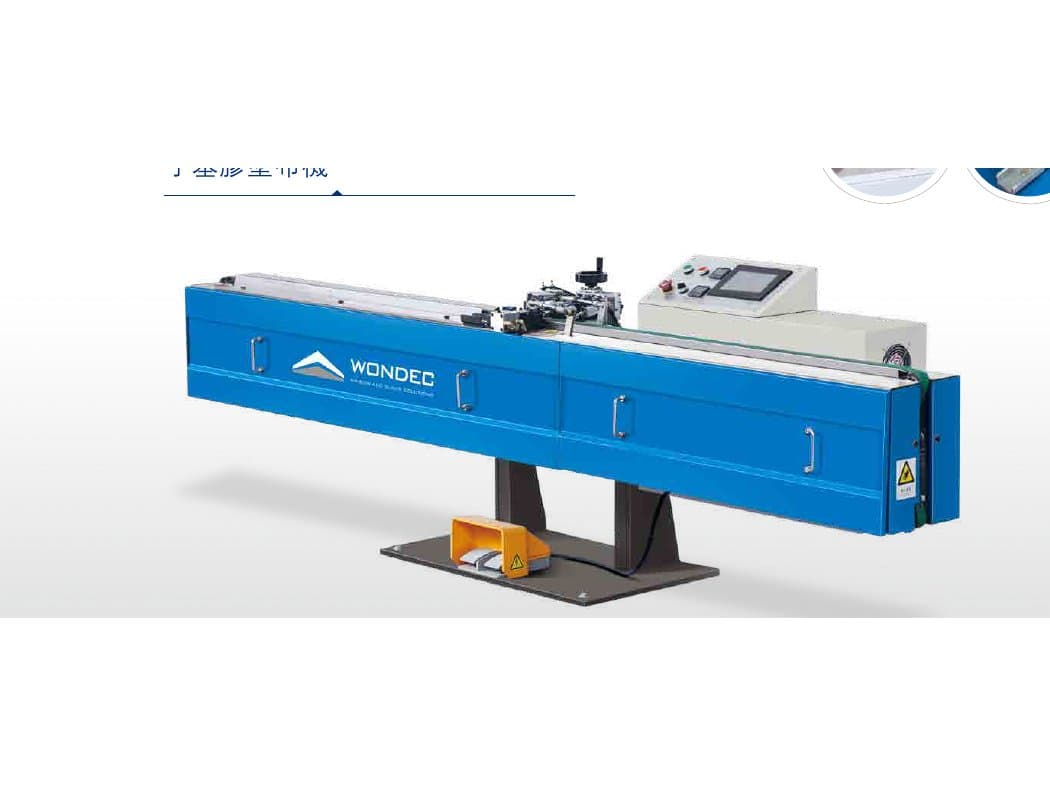

WONDEC BEM02/BEM01 Automatic Butyl Extruder
WONDEC- Exports to 50 countries
- Automation
- Automatic
- Glass type
- Warm edge
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare
A butyl sealant extruder that applies the primary seal onto aluminum spacer bar for insulating glass, with an imported gas-liquid pressure boost system for stable pressure and energy saving.
- Imported gas-liquid pressure boost system keeps pressure stable and saves energy (BEM02)
- PLC control with simple touch-screen operation (BEM02)
- Stepless speed regulation via frequency converter (BEM02)
- Spray nozzle spacing adjusts automatically according to spacer width (BEM02); adjustable manually while working on BEM01
- Preheat function available on both models
- Non-butyl automatic alarm system on both models
Key Specifications
| Installed power (kW) | Contact us to confirm this specification. |
|---|---|
| Machine footprint (m) | 3000x650x1000mm |
| Sizes in this series | 2 |
Figures as published by the manufacturer; not yet independently verified. (1-1520650149.pdf, 1-1520650149.pdf p.13)
Models in this series
| Model | Input power | Power supply | Conveying speed | Extruding temperature | Air pressure | Extruding pressure | Adjustable range of extruding nozzle (mm) | Overall dimension |
|---|---|---|---|---|---|---|---|---|
| BEM02 | 4kW | 380V/50Hz | 21m/min / 28m/min | 110-160C | 0.5-0.8Mpa | 10-15Mpa | 6-27 | 3000x650x1000mm |
| BEM01 | 4kW | 380V/50Hz | 6-25m/min | 110-160C | 0.5-0.8Mpa | 10-25Mpa | 6-27 | 3000x600x950mm |
Where it sits in the line
The stations before and after this machine on a glass processing line.
Insulating Glass Production Lines (IGU Lines)
BEM02/BEM01 Automatic Butyl Extruder
After
