Aluminum Spacer Bending Machine

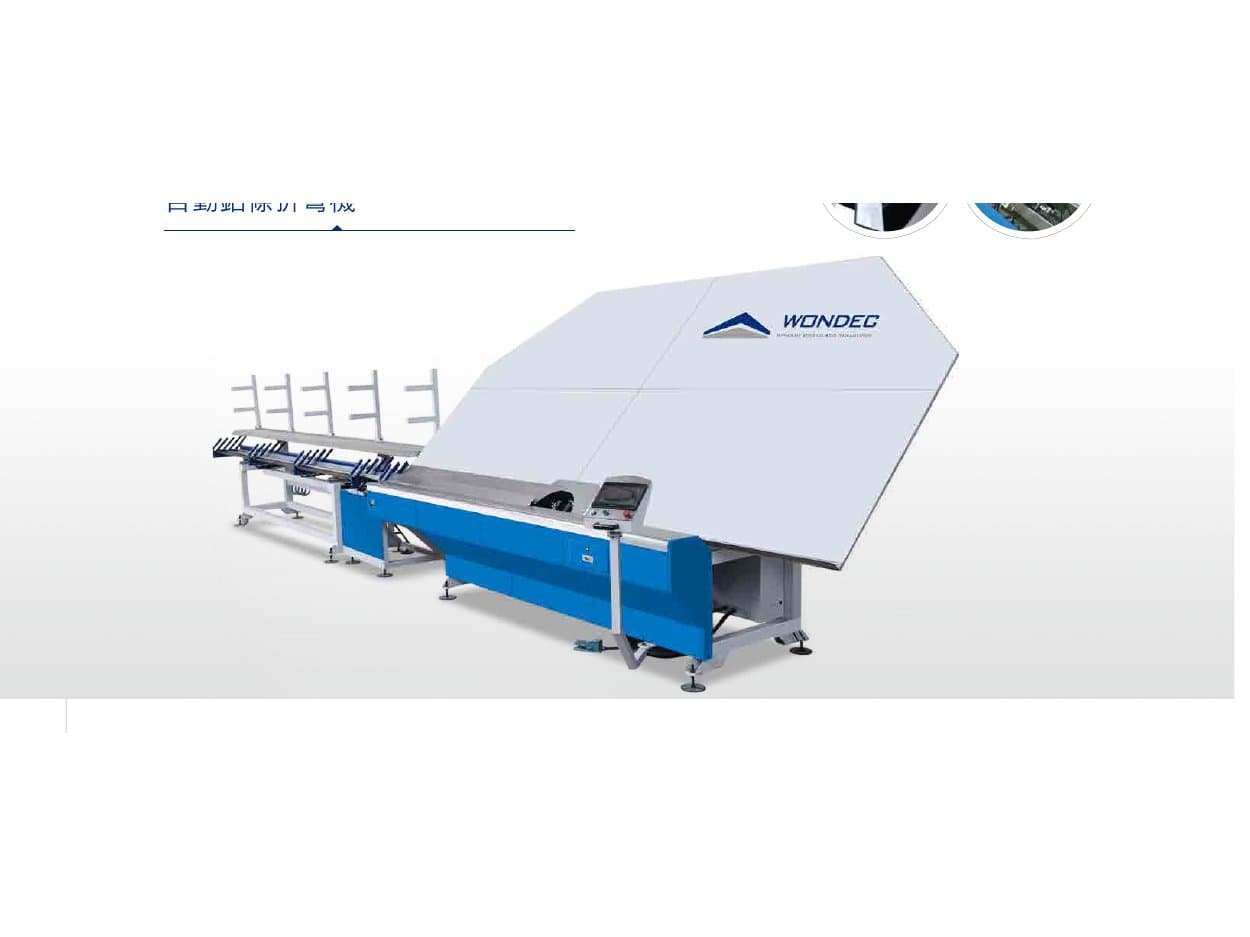

WONDEC ABM02/ABM01 Aluminum Spacer Bending Machine
WONDEC- Exports to 50 countries
- Automation
- Automatic
- Glass type
- Warm edge
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare
A bending machine for aluminum spacer bar used in insulating glass frames.
- PLC control with simple touch-screen operation (ABM02)
- Feeding system uses a CNC servo motor with a CNC-controlled bending angle system (ABM02)
- Four material storage slots hold four different spacer specifications (ABM02)
- Bending and cutting automatically avoid the spacer connection point, and the spacer is automatically cut after bending (ABM02)
- Can form triangle, rectangle, regular pentagon, regular hexagon, round and other shapes (ABM02)
- ABM01 finishes locating, bending and cutting aluminum spacer in one automatic cycle, with reliable positioning, steady running and a large processing range
Key Specifications
| Minimum glass size (mm) | Min. 200x250mm / Max. 2500x2500mm |
|---|---|
| Installed power (kW) | Contact us to confirm this specification. |
| Machine footprint (m) | 10000x2200x2600mm |
| Sizes in this series | 2 |
Figures as published by the manufacturer; not yet independently verified. (1-1520650149.pdf, 1-1520650149.pdf p.12)
Models in this series
| Model | Power supply | Air pressure | Aluminum bar specification (mm) | Aluminium frame size | Bending angle error | Total power | Feeding speed | Data base | Overall dimension |
|---|---|---|---|---|---|---|---|---|---|
| ABM02 | 380V/50Hz | 0.7Mpa | 6-27 | Min. 200x250mm / Max. 2500x2500mm | +/-0.3 deg | 4kW | 0-90m/min | sametime set 4 specification x 8 size | 10000x2200x2600mm |
| ABM01 | 380V/50Hz | 0.6Mpa | 5.5-26.5 | Min. 350x350mm / Max. 2500x2500mm | +/-0.3 deg | 2.5kW | 0-120m/min | / | 4400x1600x2300mm |
Where it sits in the line
The stations before and after this machine on a glass processing line.
Insulating Glass Production Lines (IGU Lines)
ABM02/ABM01 Aluminum Spacer Bending Machine
After
Similar machines
Jinan Rongqi Intelligent Technology Co.,Ltd. Double Glazing Glass Rotated Sealant Spreading Table
Jinan Rongqi Intelligent Technology Co.,Ltd.Max sheet size: 2000*1500mm
Jinan Rongqi Intelligent Technology Co.,Ltd. RQ2500
Jinan Rongqi Intelligent Technology Co.,Ltd.Max sheet size: 2500*5000mm (HD2500)

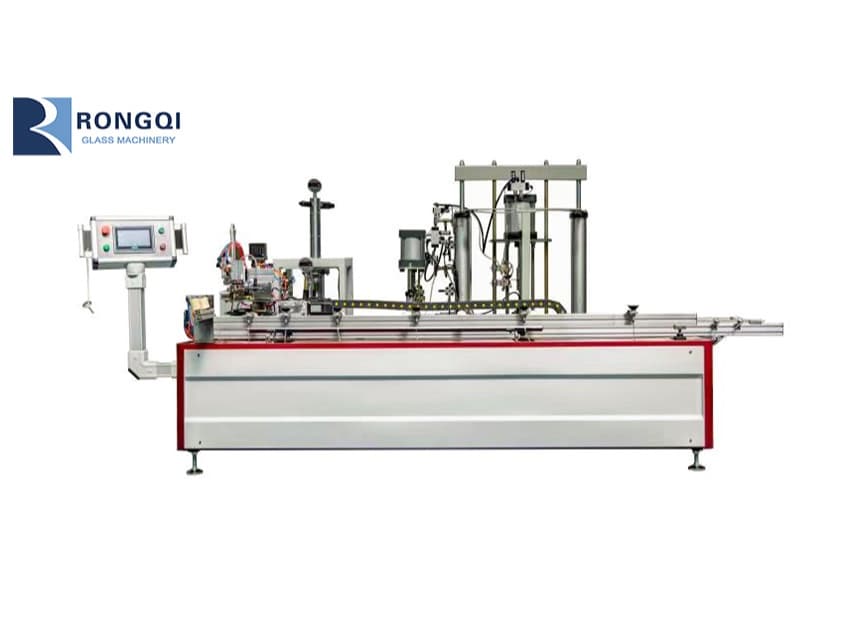

Jinan Rongqi Intelligent Technology Co.,Ltd. Automatic High-Precision Two-Component Coating Machine
