Insulating Glass Production Line

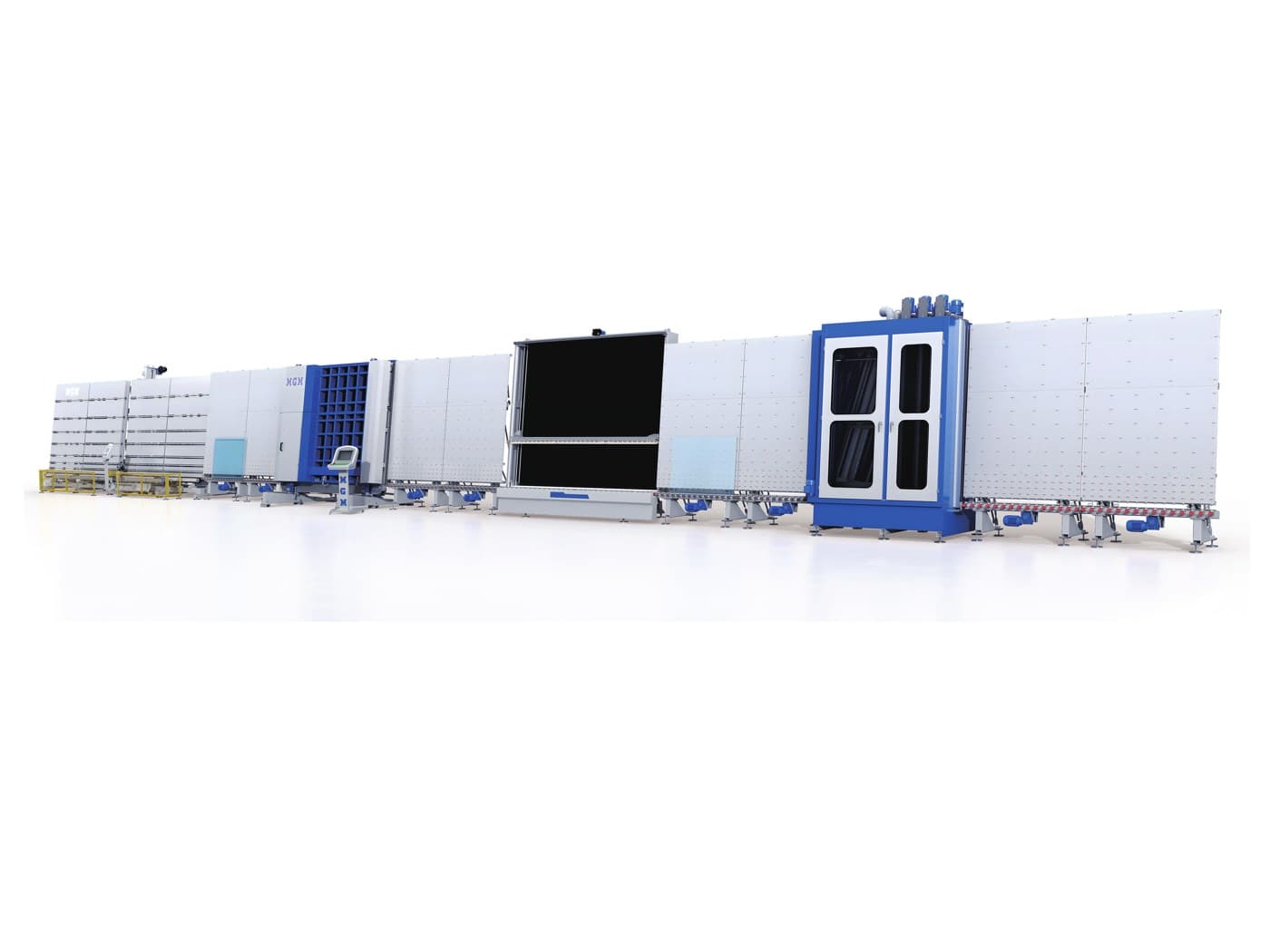

MGM Automatic Gas Filling Insulating Glass Line
MGM- Max sheet size
- 2700 x 3500 mm
- Thickness
- 3-15
- Automation
- Automatic
- Glass type
- Double, Warm edge, Gas fill
- Power
- 525
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare
MGM's gas filling IG line.
- Sand and carbon filters with soft coat Low-E brushes; air knives dry the glass
- Inspection and spacer placement conveyor panel specially treated for glass inspection
- Optional gas filling with initial percentages of 90 percent
- Integrated press panel for flatness
- Frame aging treatment so the frame does not deform in long service
Key Specifications
| Maximum glass size (mm) | 2700 x 3500 mm |
|---|---|
| Minimum glass size (mm) | 180 x 360 mm |
| Glass thickness range (mm) | 3-15 |
| Installed power (kW) | 525 |
| Sizes in this series | 10 |
Figures as published by the manufacturer; not yet independently verified. (MGM catalog-240418.pdf, 8-9)
Models in this series
| Parameter | ZC27/35 |
|---|---|
| Min size | 180 x 360 mm |
| Max size | 2700 x 3500 mm |
| Glass thickness | 3-15 mm |
| IG thickness | < 56 mm |
| Washing speed | 1-10 m/min |
| Transport speed | 1-50 m/min |
| Transport height | 550-650 mm |
| Power supply | approx 75 kW |
| IG types | Double / triple units |
| Options | Automatic gas filling, 3-side step units |
Technical data, catalog page 9.
Where it sits in the line
The stations before and after this machine on a glass processing line.
Insulating Glass Production Lines (IGU Lines)
Automatic Gas Filling Insulating Glass Line
After
Similar machines
Manufacturer
Beijing MGM Glass Machinery manufactures insulating glass equipment, with automatic sealing robots and automatic insulating glass production lines as its core products. It operates two separate plants totalling around 140,000 square metres with 113,000 square metres of fabrication space and several hundred employees. MGM states it has a Korean technical support team and a technical partnership with Beijing University of Science and Technology.
View the manufacturerMGM Automatic Gas Filling Insulating Glass Line
