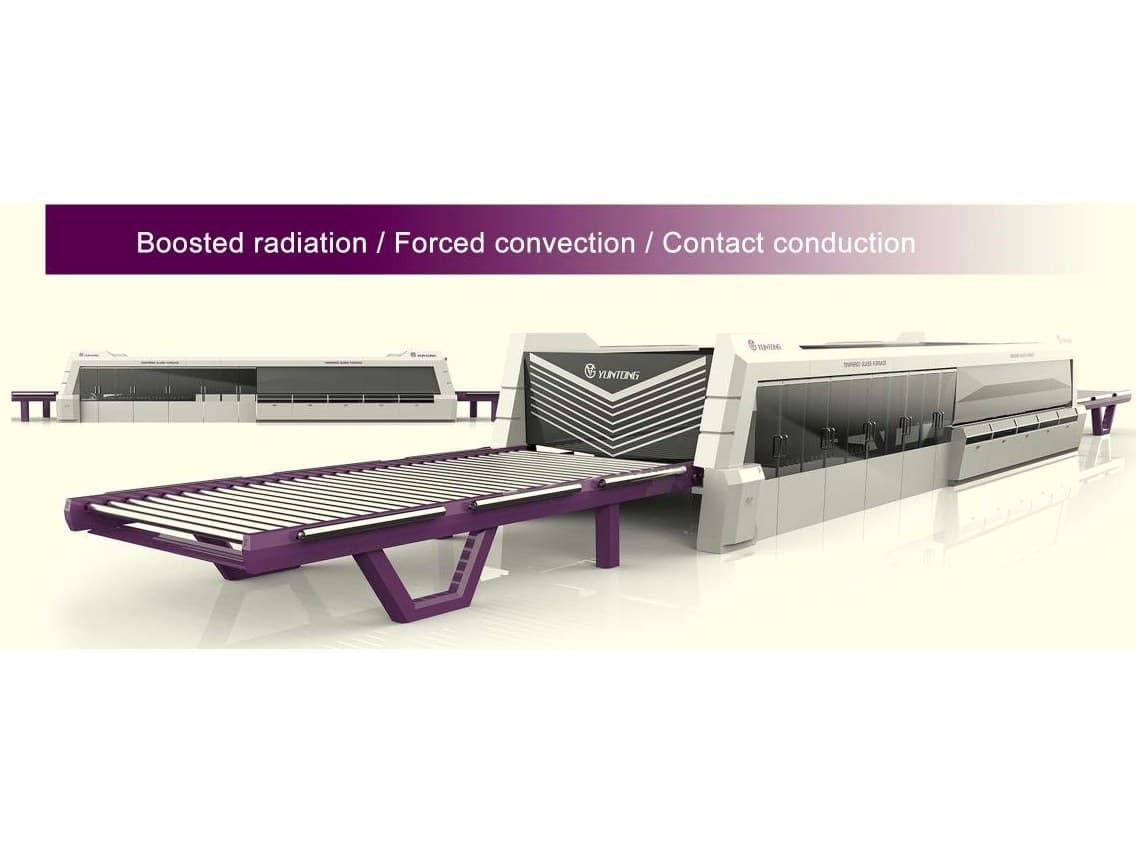

Glass Tempering Furnace
Yuntong B Series
Yuntong- Max sheet size
- 2500 x 6100
- Thickness
- 2.2-19
- Glass type
- Jumbo sheets
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare
A pass-through chiller designed to save quenching power and temper thin glass at full load with limited fan power.
- Tempers glass from 2.2mm
- High-stream nozzles in the high pressure zones produce concentrated air streams for very rapid quenching
- Full load thin glass tempering with limited quenching power
Key Specifications
| Maximum glass size (mm) | 2500 x 6100 |
|---|---|
| Minimum glass size (mm) | 100 x 300 |
| Glass thickness range (mm) | 2.2-19 |
| Production rate | 18.2 |
| Sizes in this series | 13 |
Figures as published by the manufacturer; not yet independently verified. (Yuntong catalog_2023EN.pdf, 6)
Models in this series
| Model | Max load area (mm) | Min glass size (mm) | Glass thickness (mm) | Production rate (5mm batch/hour) |
|---|---|---|---|---|
| PG1224DTB | 1220 x 2440 | 100 x 300 | 2.2-19 | 18.2 |
| PG1524DTB | 1525 x 2440 | 100 x 300 | 2.8-19 | 18.2 |
| PG1530DTB | 1525 x 3050 | 100 x 300 | 2.8-19 | 18 |
| PG1536DTB | 1525 x 3660 | 100 x 300 | 2.8-19 | 17.8 |
| PG1830DTB | 1830 x 3050 | 100 x 350 | 2.8-19 | 18 |
| PG1836DTB | 1830 x 3660 | 100 x 350 | 2.8-19 | 17.8 |
| PG2136DTB | 2135 x 3660 | 100 x 350 | 2.8-19 | 17.8 |
| PG2142DTB | 2135 x 4270 | 100 x 350 | 2.8-19 | 17.6 |
| PG2150DTB | 2135 x 5000 | 100 x 350 | 2.8-19 | 17.4 |
| PG2436DTB | 2440 x 3660 | 100 x 350 | 3.2-19 | 17.8 |
| PG2442DTB | 2440 x 4270 | 100 x 350 | 3.2-19 | 17.6 |
| PG2550DTB | 2500 x 5000 | 100 x 350 | 3.2-19 | 17.4 |
| PG2560DTB | 2500 x 6100 | 100 x 350 | 3.2-19 | 17.1 |
Basic technical data of DTB glass tempering lines.
Where it sits in the line
The stations before and after this machine on a glass processing line.
Glass Tempering Furnaces
B Series
After
Similar machines
Manufacturer
Yuntong has concentrated on glass processing technology and machinery for over 40 years, and built China's first horizontal tempering furnace in 1989. The company reports leading work in zonal heating control, quenching power saving and forced convection heating, and states it has delivered over 700 tempering lines worldwide for architectural, appliance, automotive, furniture and PV glass.
