Glass Bending and Tempering Furnace
Jinglass Horizontal Concave/Convex Bending Furnace
Jinglass- Max sheet size
- 3500 x 9000
- Thickness
- 3.2-19
- Glass type
- Flat, Bent, Jumbo sheets
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare
A rigid shaft bending and tempering furnace.
- Processes both concave and convex curvature
- Flat tempering and bend tempering in one line
- Wide range of conventional arc lengths per bed size
Key Specifications
| Maximum glass size (mm) | 3500 x 9000 |
|---|---|
| Glass thickness range (mm) | 3.2-19 |
| Sizes in this series | 28 |
Figures as published by the manufacturer; not yet independently verified. (catalog 260320 compressed.pdf, catalog 15-16)
Models in this series
| Model | Flat glass thickness (mm) | Flat max loading size (mm) | Bend glass thickness (mm) | Bend max straight edge length (mm) |
|---|---|---|---|---|
| JGF-FB-4896 | 3.2-19 | 1250 x 2500 | 4-12 | 1250 |
| JGF-FB-48124 | 3.2-19 | 1250 x 3000 | 4-12 | 1250 |
| JGF-FB-60124 | 3.2-19 | 1550 x 3000 | 4-12 | 1550 |
| JGF-FB-60144 | 3.2-19 | 1550 x 3660 | 4-12 | 1550 |
| JGF-FB-70144 | 3.2-19 | 1800 x 3660 | 4-12 | 1800 |
| JGF-FB-70168 | 3.2-19 | 1800 x 4200 | 4-12 | 1800 |
| JGF-FB-80124 | 4-19 | 2000 x 3000 | 4-12 | 2000 |
| JGF-FB-80144 | 4-19 | 2000 x 3660 | 4-12 | 2000 |
| JGF-FB-80168 | 4-19 | 2000 x 4200 | 4-12 | 2000 |
| JGF-FB-84144 | 4-19 | 2200 x 3660 | 4-12 | 2200 |
| JGF-FB-84168 | 4-19 | 2200 x 4200 | 4-12 | 2200 |
| JGF-FB-96144 | 5-19 | 2500 x 3660 | 5-12 | 2500 |
| JGF-FB-96168 | 5-19 | 2500 x 4200 | 5-12 | 2500 |
| JGF-FB-96200 | 5-19 | 2500 x 5000 | 5-12 | 2500 |
| JGF-FB-96240 | 5-19 | 2500 x 6000 | 5-12 | 2500 |
| JGF-FB-96280 | 5-19 | 2500 x 7000 | 5-12 | 2500 |
| JGF-FB-108240 | 5-19 | 2700 x 6000 | 5-12 | 2700 |
| JGF-FB-124200 | 5-19 | 3000 x 5000 | 5-12 | 3000 |
| JGF-FB-124240 | 5-19 | 3000 x 6000 | 5-12 | 3000 |
| JGF-FB-124360 | 5-19 | 3000 x 9000 | 5-12 | 3000 |
| JGF-FB-138240 | 5-19 | 3500 x 6000 | 5-12 | 3500 |
| JGF-FB-138360 | 5-19 | 3500 x 9000 | 5-12 | 3500 |
| JGF-FB-158108 | 8-19 | 4000 x 2700 | 5-12 | 4000 |
| JGF-FB-158140 | 8-19 | 4000 x 3500 | 5-12 | 4000 |
| JGF-FB-200108 | 8-19 | 5000 x 2700 | 5-12 | 5000 |
| JGF-FB-200140 | 8-19 | 5000 x 3500 | 5-12 | 5000 |
| JGF-FB-240108 | 8-19 | 6000 x 2700 | 5-12 | 6000 |
| JGF-FB-240140 | 8-19 | 6000 x 3500 | 5-12 | 6000 |
Above data is only for reference, the final data will be specified in the contract. Optional conventional arc lengths are listed in the catalog per model and are not reproduced in full here; request the arc length table from Jinglass for a specific model.
Where it sits in the line
The stations before and after this machine on a glass processing line.
Glass Tempering Furnaces
Horizontal Concave/Convex Bending Furnace
After

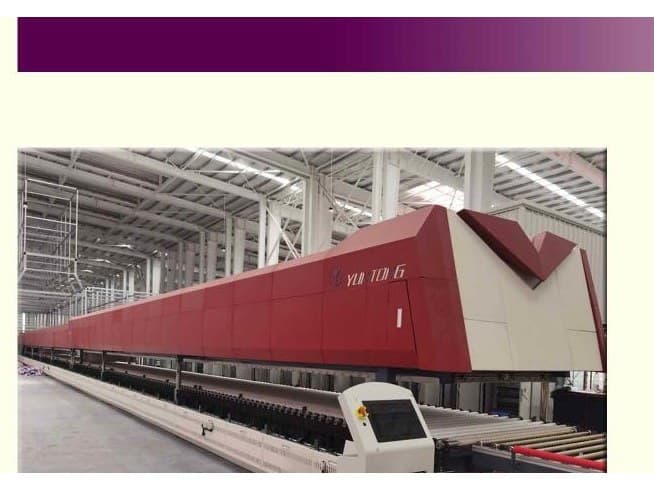

Similar machines
Manufacturer
Jinglass Machinery, founded in 2003, specializes in intelligent tempering, providing digital solutions and tempering furnaces for glass processors worldwide. The company states it was first in the industry to implement an algorithm that automatically generates tempering parameters from glass layout and enables dynamic temperature control according to real-time glass position. Its ultra-thin tempering technology and temperature control process are reported in over 400 photovoltaic glass continuous tempering lines worldwide.
