Handong Automatic Laminated Glass Production Line
Handong- CE
- ISO 9001 (SGS / UKAS)
- Thickness
- 4-80
- Automation
- Automatic
- Glass type
- Autoclave
- Power
- 475
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare

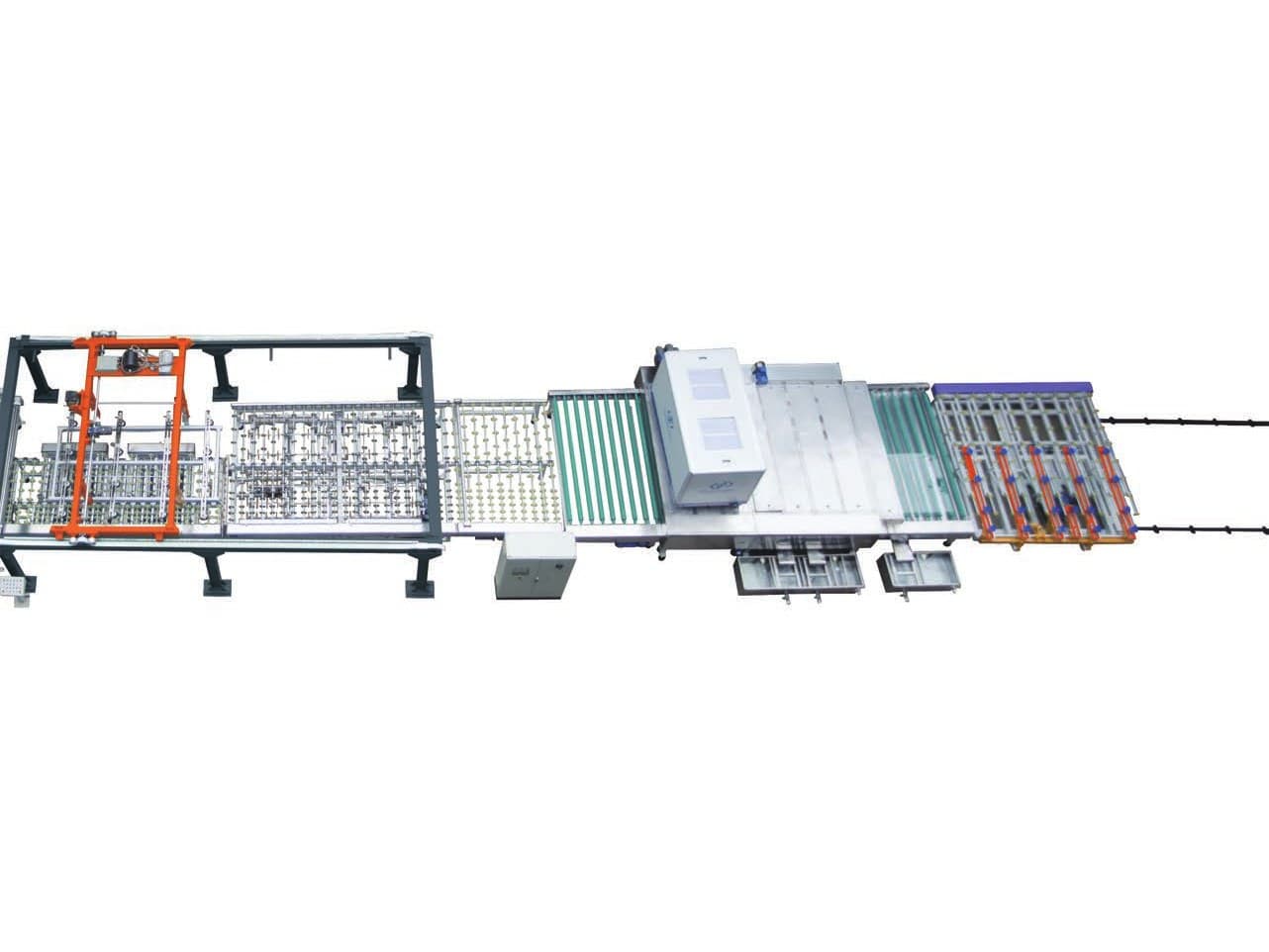

A PLC-controlled laminated glass line that runs loading, cleaning, assembling, pre-pressing and unloading automatically.
- Automatic positioning and assembly with an accuracy of +/- 0.5 mm
- PLC centralised control of the whole process
- Running status and maintenance can be monitored remotely over the network
- Modular design allowing different configurations

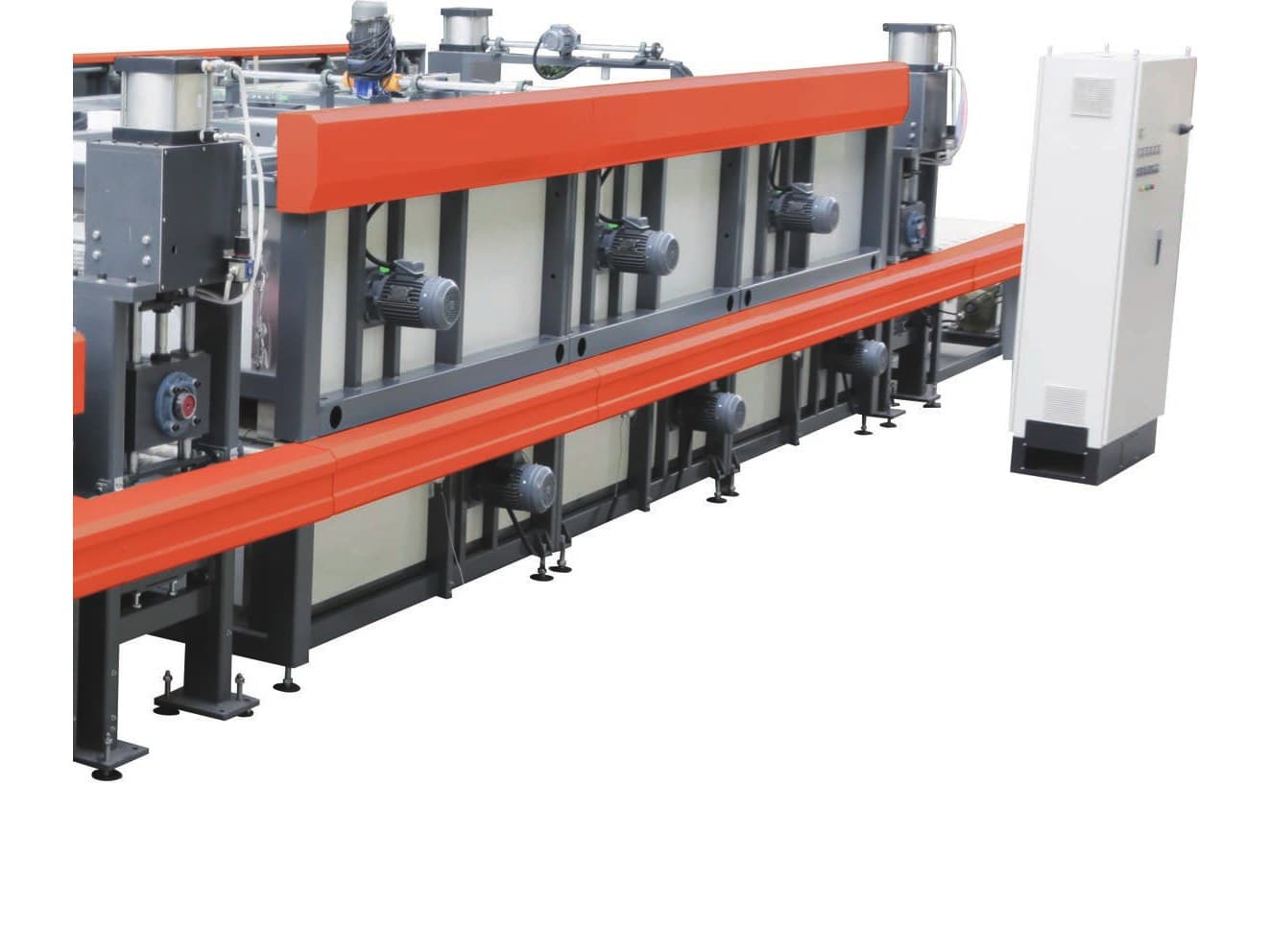

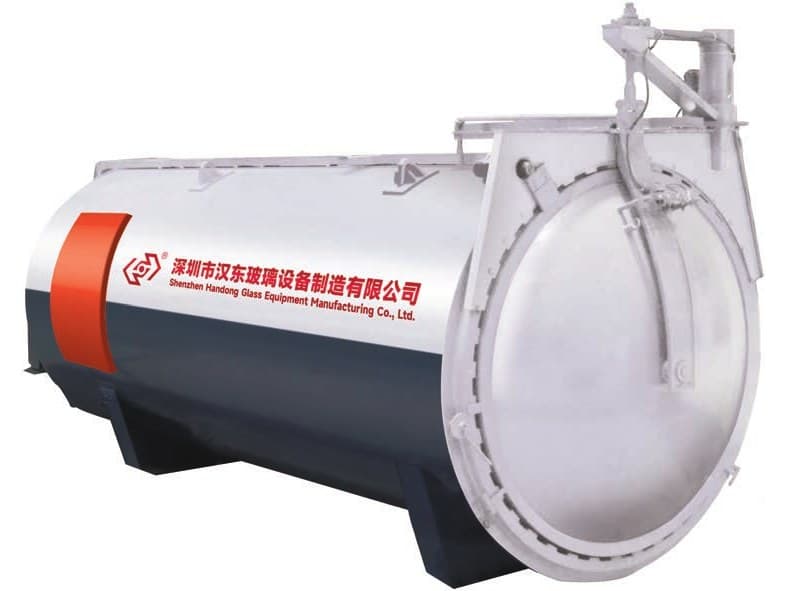

- Line comprises loading table, washing and drying unit, cleaning room, conveying table, full forced convection furnace, conveying table, unloading table, trolley and autoclave
Key Specifications
| Minimum glass size (mm) | 300 x 400 |
|---|---|
| Glass thickness range (mm) | 4-80 |
| Installed power (kW) | 475 |
| Sizes in this series | 8 |
Figures as published by the manufacturer; not yet independently verified. (Shenzhen Handong Glass Equipment.pdf, 4-5)
Models in this series
| Model | Size of glass, automatic (mm) | Size of glass, manual (mm) | Min size of glass (mm) | Thickness of glass (mm) | Speed of transmission (m/min) | Speed of pressing machine (m/min) | Power (kW) |
|---|---|---|---|---|---|---|---|
| JC1840Q-HD | 1800 x 4000 | 1400 x 6000 | 300 x 400 | 4-80 | 5-25 | 0-5 | 299.5 |
| JC2040Q-HD | 2000 x 4000 | 2000 x 6000 | 300 x 400 | 4-80 | 5-25 | 0-5 | 302.6 |
| JC2540Q-HD | 2500 x 4000 | 2500 x 6000 | 300 x 400 | 4-80 | 5-25 | 0-5 | 319.8 |
| JC2560Q-HD | 2500 x 6000 | 2500 x 10000 | 300 x 400 | 4-80 | 5-25 | 0-5 | 322 |
| JC3060Q-HD | 3000 x 6000 | 3000 x 10000 | 300 x 400 | 4-80 | 5-25 | 0-5 | 330.8 |
| JC3360Q-HD | 3300 x 6000 | 3300 x 10000 | 300 x 400 | 4-80 | 5-25 | 0-5 | 332.6 |
| JC33200Q-HD | 3300 x 10000 | 3300 x 20000 | 500 x 500 | 4-80 | 5-25 | 0-5 | 414.37 |
| JC36180Q-HD | 3600 x 9000 | 36000 x 18000 | 500 x 500 | 4-80 | 5-25 | 0-5 | 475 |
Technical parameters, catalog page 5. Two glass size columns are given: automatic assembly and manual assembly.
Where it sits in the line
The stations before and after this machine on a glass processing line.
Glass Laminating Equipment
Automatic Laminated Glass Production Line
After
Similar machines
Manufacturer
Shenzhen Handong Glass Equipment Manufacturing started in 2003 and launched what it describes as the industry's first high-end Low-E flat glass washing machine in 2004, a photovoltaic flat glass integrated washing machine in 2009, a mobile phone glass plate washing machine in 2014 and a watch glass cover washing machine in 2019. Over twenty years it developed into a glass deep processing equipment manufacturer covering design, research and development, processing, manufacturing, marketing and after-sales service, with glass washing machine and laminated glass production line series that together comprise more than 100 models. In early 2022 it formed Changzhou Youhe Intelligent Technology Co., Ltd., adding edge grinding machines to its range.
