Glass Edge Deseaming Machine
ITECH APUS Vertical Dry Deseaming Machine
ITECH- Thickness
- 3-25
- Automation
- Automatic
- Glass type
- Flat edge
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare
APUS is the newest addition to the ITECH family: a vertical dry deseaming machine presented as the most compact and innovative solution on the market for working glass edges.
- Space optimisation: at just 7.7 metres long, APUS is stated to be the most compact machine of its kind on the market
- Fully automatic glass dimension detection and management
- Works both edges simultaneously, with a working speed of up to 30 m/min
- Designed for insulating glass unit, tempered glass and Low-E glass production
- Eliminates water from the production process
- Deseamed glass is stated to reduce wear on other machinery's components by up to 70%
Key Specifications
| Glass thickness range (mm) | 3-25 |
|---|---|
| Installed power (kW) | Contact us to confirm this specification. |
| Production rate | 200 kg/m |
| Sizes in this series | 11 |
Figures as published by the manufacturer; not yet independently verified. (download-catalogo-prodotti.pdf (CATALOGO GENERALE), download-catalogo-prodotti.pdf p.10-11 (Linea Tauro))
Models in this series
| Parameter | Value |
|---|---|
| Minimum workable dimensions | L400 x H240 mm |
| Maximum workable dimensions | L3000 x H2000 mm / L3000 x H2500 mm / L3000 x H2700 mm (optional additional rack up to L6000mm) |
| Minimum workable thickness | 3 mm |
| Maximum workable thickness | 25 mm |
| Transfer speed | 5-30 m/min |
| Maximum deseaming speed | 30 m/min |
| Deseaming time | 1 sq.m: +/- 30 sec |
| Working height (glass edge to floor) | 525-700 mm |
| Standard power supply | 400V - 50Hz 3Ph + Earth + Neutral |
| Minimum operating pressure | 6 bar |
| Maximum load capacity | 200 kg/m |
Table translated from the catalog's DATI TECNICI panel, values verbatim.
Where it sits in the line
The stations before and after this machine on a glass processing line.
Glass Edging and Polishing Machines
APUS Vertical Dry Deseaming Machine

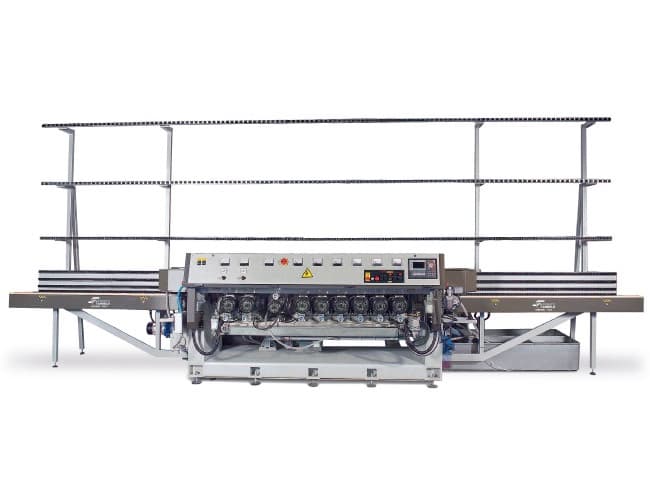

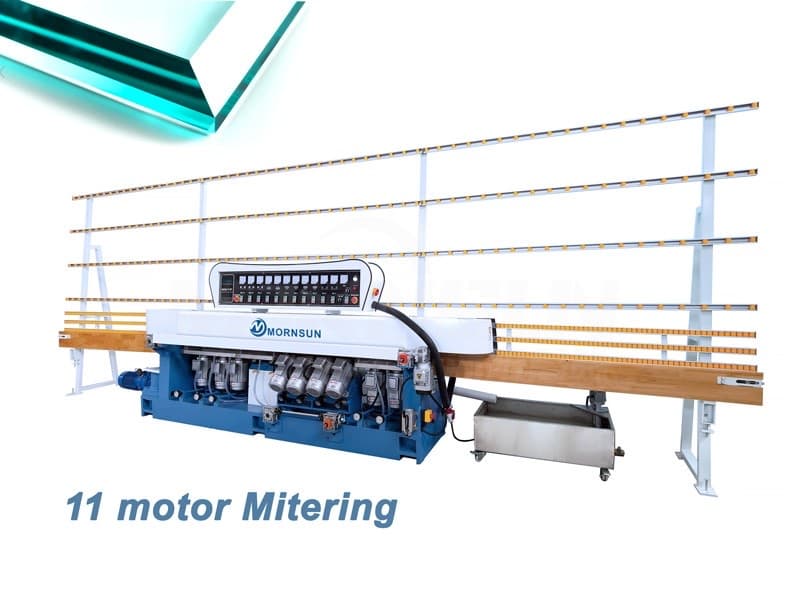

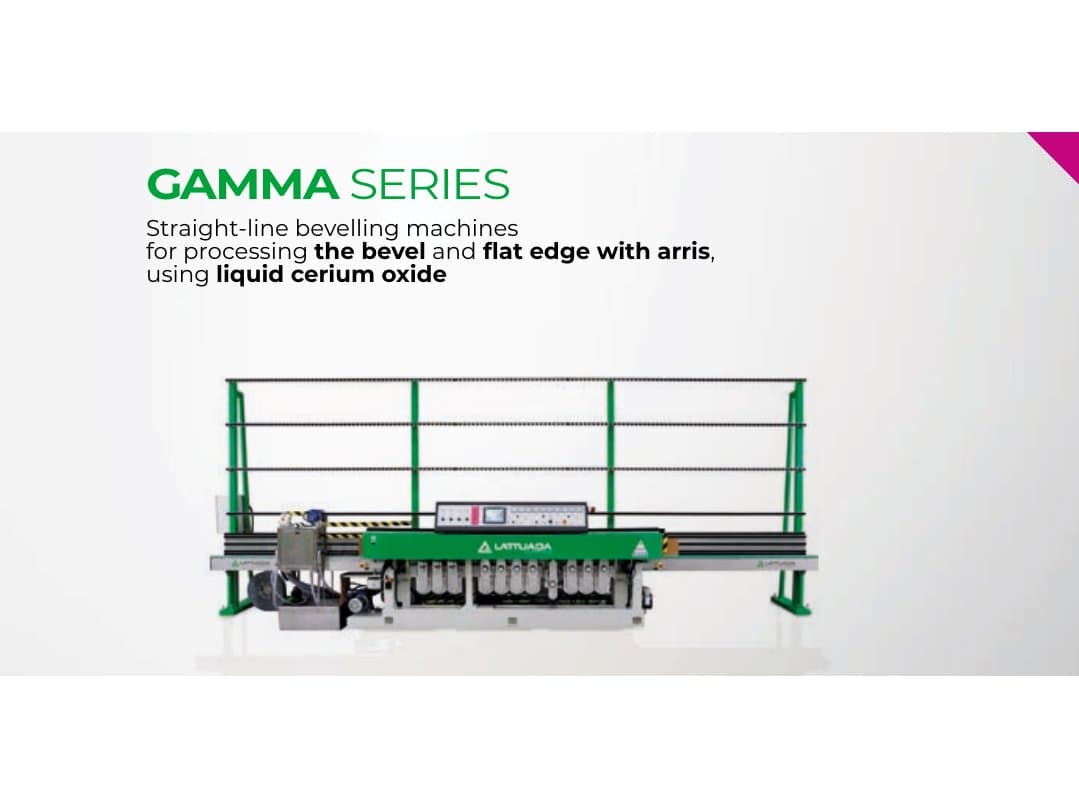

Similar machines
Manufacturer
ITECH is an Italian manufacturer of insulating glass unit (vetrocamera) production machinery based in Tombolo, near Padua. The catalog traces the company's roots to 1991, when the Andretta family worked in industrial electrical automation; ITECH itself, a family-run business, was founded in 2001 and has since specialised in building machinery for insulating glass unit production, serving domestic and international glassworks. The company states it was the 2025 winner of the Flat Glass Tech Awards.
View the manufacturerITECH APUS Vertical Dry Deseaming Machine
Request pricing
