Glass Double Round Edging Machine
Hiseng SYM Straight Line Double Round Edging Machine
Hiseng- CE
- Max sheet size
- 2000 x 1500 mm
- Thickness
- 3-25
- Automation
- Automatic
- Glass type
- Rectangular, Shaped
- Power
- 4
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare

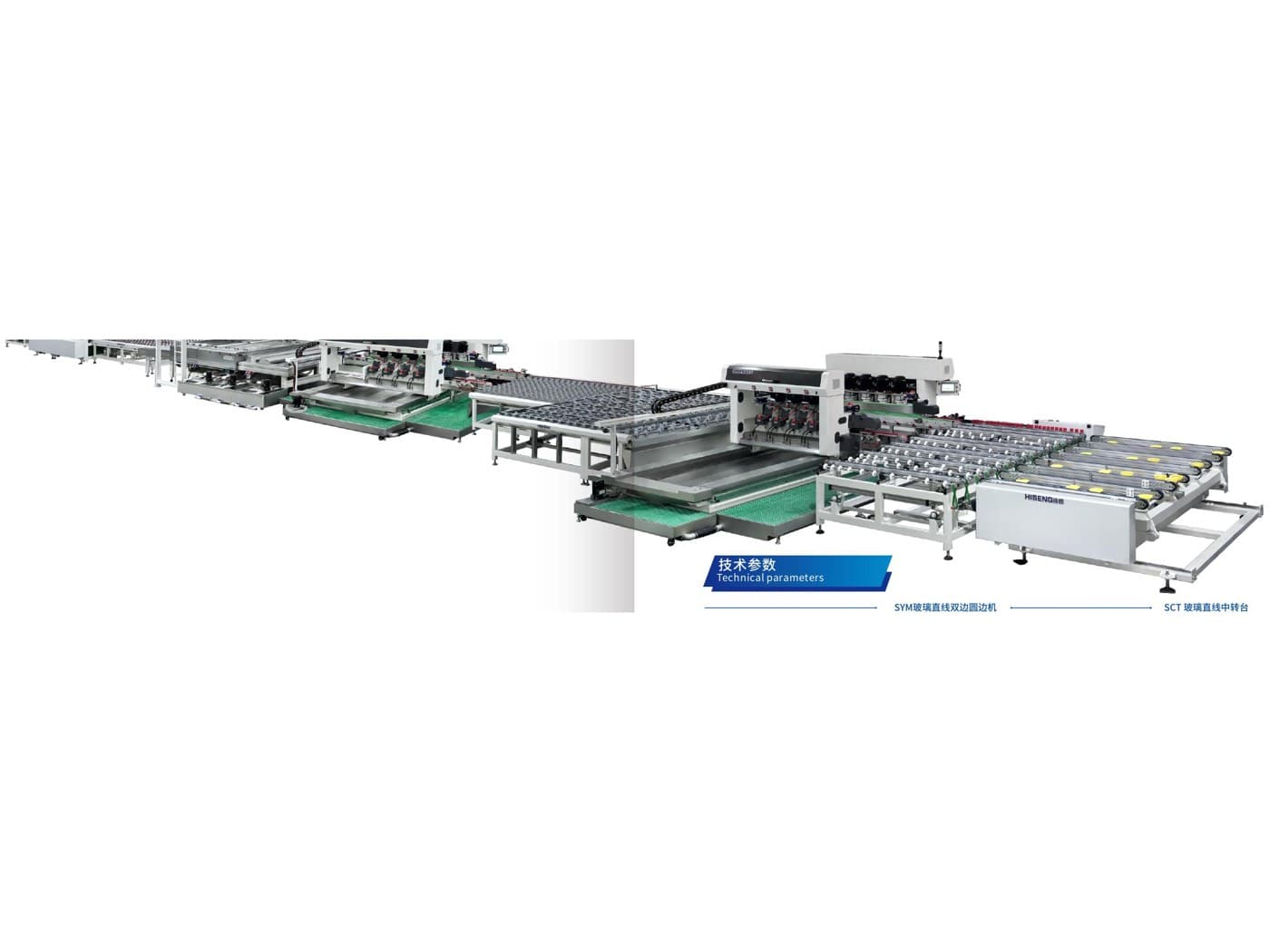

A double round edger line built from a first round edger, a transfer table and a second round edger under one PLC and touchscreen control system, giving fully automated processing of four rounded glass edges and safety bevels in one operation.
- Three machine design: first round edger, transfer table, second round edger
- Dual-servo chamfering mechanism running 0-20 m/min
- Diagonal error under +/- 0.5 mm/m on 1.5 to 8 mm glass
- Pneumatic quick wheel change, full line wheel change in about 5 minutes
- Siemens servo drives and Schneider Electric components
- Multi-layer waterproof protection and automatic shutdown alarm for glass jams
Key Specifications
| Maximum glass size (mm) | 2000 x 1500 mm |
|---|---|
| Minimum glass size (mm) | 250 x 250 mm (special order 100 x 100 mm) |
| Glass thickness range (mm) | 3-25 |
| Installed power (kW) | 4 |
| Sizes in this series | 11 |
Figures as published by the manufacturer; not yet independently verified. (HISENG2026立体版.pdf, 15-16)
Models in this series
| Parameter | SYM double round edging machine | SCT transferring table |
|---|---|---|
| Thickness of glass | 3-12 mm | 3-25 mm |
| Minimum size of glass | 250 x 250 mm (special order 100 x 100 mm) | 300 x 300 mm |
| Maximum size | SYM-0815 250 x 1500; SYM-1225 250 x 2500; SYM-1215 250 x 1500; SYM-1230 250 x 4500; SYM-1220 250 x 2000 | 2000 x 1500 mm |
| Transmission speed | 0.5-12 m/min | 1-50 m/min |
| Size change speed | 1-10 m/min | – |
| Glass parallel tolerance | 0.2 mm | – |
| Glass diagonal tolerance | 0.5 mm | – |
| Max grinding volume | 3 mm (single side) | – |
| Dubbing width | 0-4 mm | – |
| Air required | 0.6-0.8 MPa | 0.6-0.8 MPa |
| Total power | SYM 04 12 kW / SYM 08 23 kW / SYM 12 32 kW | 4 kW |
Technical parameters, catalog page 16. SYM total power: SYM 04 12 kW, SYM 08 23 kW, SYM 12 32 kW. Grinding wheel arrangements offered as SYM-06, SYM-08 and SYM-12.
Where it sits in the line
The stations before and after this machine on a glass processing line.
Glass Double-Edging Machines
SYM Straight Line Double Round Edging Machine
Similar machines
Manufacturer
Guangdong Hiseng Glass Machinery specializes in the research, manufacture and sale of glass edging equipment. Its flagship products are high-speed double edging machines and super large high-speed end edging machines built around its own patented grinding head structure. The company operates automated precision machining centres, laboratory testing equipment and a streamlined assembly process.
