Glass Cutting Table
ANHUI MORNSUN INTERNATIONAL CO., LTD. CNC Glass Cutting Machine with Loading Function
ANHUI MORNSUN INTERNATIONAL CO., LTD.- CE
- SGS
- Exports to 27 countries
- Max sheet size
- 4200*2800MM
- Thickness
- 3-19
- Automation
- Automatic
- Factory-direct pricing
- Shipping, installation and commissioning quoted together
- No buyer premium
Talk directly with a glass machinery specialist.
Compare
This CNC glass cutting machine integrates loading, cutting, and breaking in one unit.
- Integrates loading, cutting, and breaking in one unit
- CNC control software cuts glass sheets of various sizes and shapes
- For construction, automobile, furniture, and home appliance glass processing
- Three bed-size models: MSC-2621, MSC-3829, MSC-4228
Key Specifications
| Maximum glass size (mm) | 4200*2800MM |
|---|---|
| Glass thickness range (mm) | 3-19 |
| Installed power (kW) | Contact us to confirm this specification. |
| Sizes in this series | 9 |
Figures as published by the manufacturer; not yet independently verified. (website product pages (https://www.mornsunglass.com), https://www.mornsunglass.com/cnc-glass-cutting-machine-with-loading-function (product page))
Models in this series
| Model | MSC-2621 | MSC-3829 | MSC-4228 |
|---|---|---|---|
| Max. Glass Size | 2440*2000MM | 3660*2880MM | 4200*2800MM |
| Glass Thickness | 3 ~ 19mm | 3 ~ 19mm | 3 ~ 19mm |
| Cutting Speed | 0 ~ 180m/min | 0 ~ 180m/min | 0 ~ 180m/min |
| Loading Speed | 15 ~ 40 second | 15 ~ 40 second | 15 ~ 40 second |
| Machine Power | 11kw | 13kw | 15kW |
| Compress Air | 0.6Mpa | 0.6Mpa | 0.6Mpa |
| Film Removal | Optional | Optional | Optional |
| Labeling | Optional | Optional | Optional |
| Power Supply | 380V 50Hz customized | 380V 50Hz customized | 380V 50Hz customized |
The source table prints Cutting Speed, Loading Speed, Compress Air, Film Removal, Labeling, and Power Supply once for the whole table rather than once per model column; those figures are repeated below across all three model columns.
Where it sits in the line
The stations before and after this machine on a glass processing line.
Glass Cutting Tables
CNC Glass Cutting Machine with Loading Function
Similar machines
Laminated Glass Cutting Machine
STRONMax sheet size: 2500 / 3300 / 3700 mm

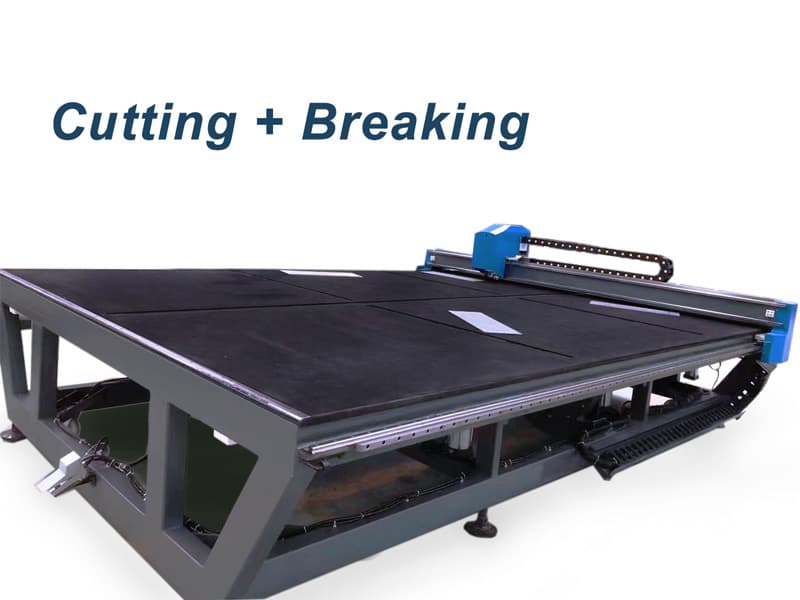

ANHUI MORNSUN INTERNATIONAL CO., LTD. CNC Glass Cutting and Breaking Machine
ANHUI MORNSUN INTERNATIONAL CO., LTD.Max sheet size: 3660*2440MM

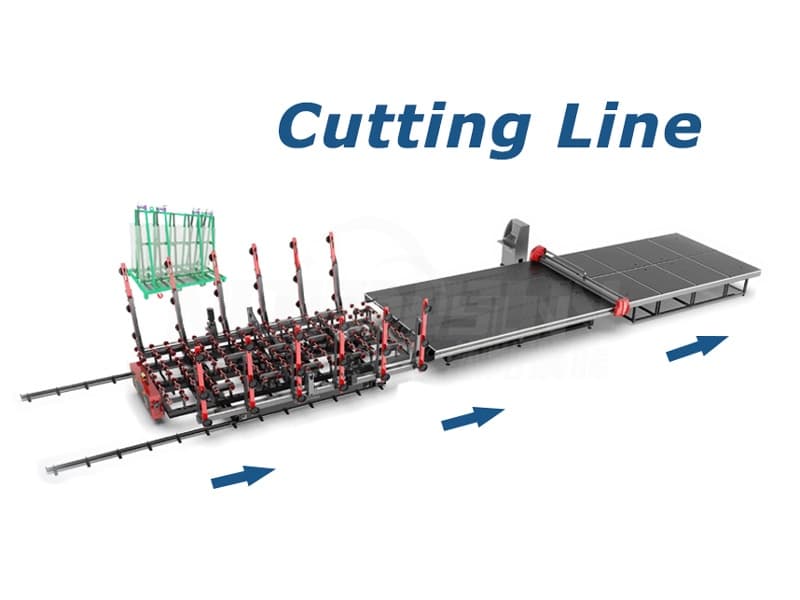

ANHUI MORNSUN INTERNATIONAL CO., LTD. Full Automatic Glass Cutting Line
